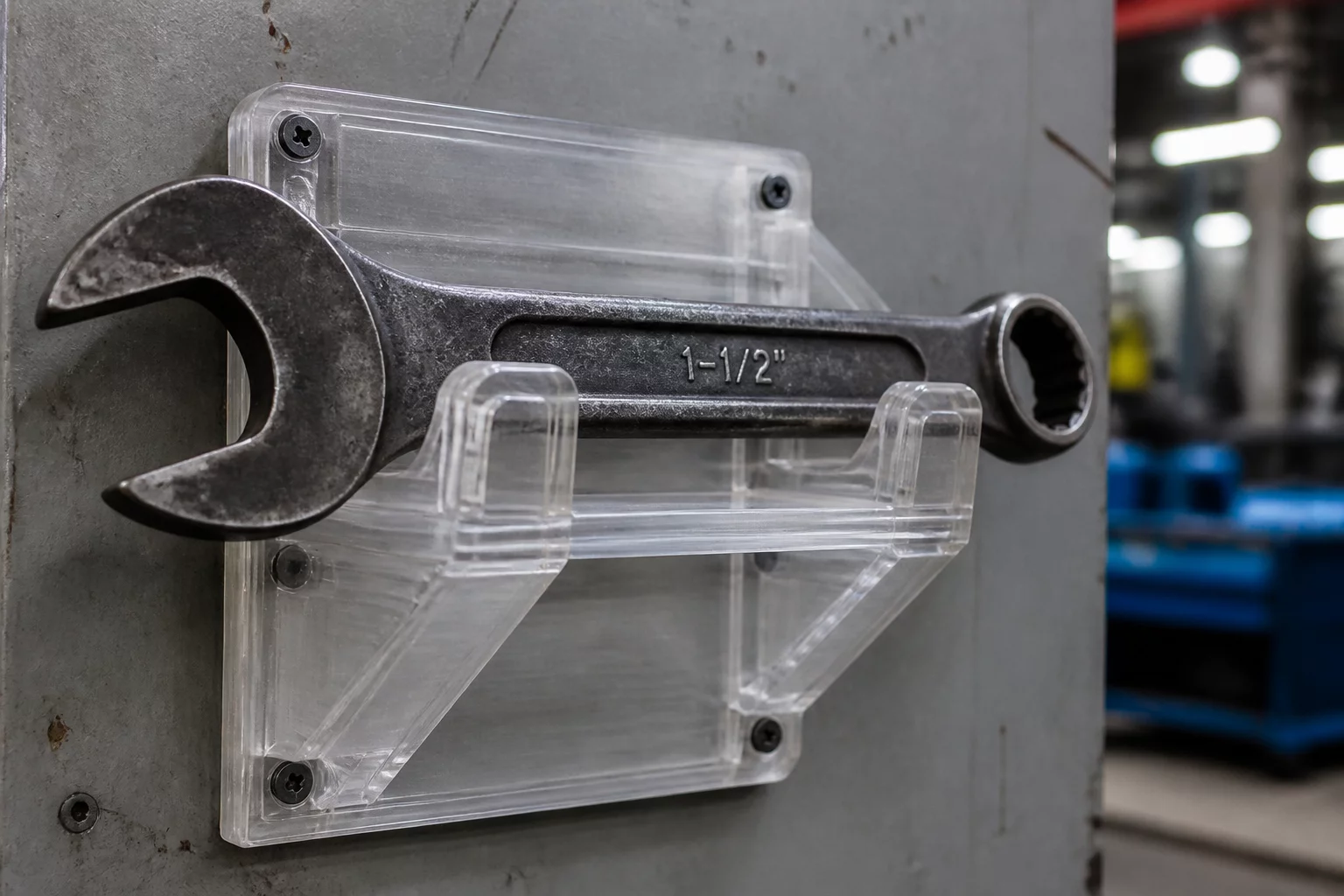

Polycarbonate Impact Strength

Understanding the Superior Resilience of Polycarbonate

Polycarbonate (PC) stands at the pinnacle of engineering filaments when the primary requirement is raw impact resistance. Unlike brittle materials such as PLA or even the relatively sturdy ABS, PC possesses a unique ability to undergo plastic deformation—meaning it bends and stretches significantly before it actually breaks. This characteristic makes it the preferred choice for safety shields, mechanical housings, and structural components subjected to sudden forces or constant vibrations.

In the world of additive manufacturing, however, impact strength is not merely a material property inherited from the raw resin. It is a result of effective layer fusion and thermal management. When a PC part is struck, the kinetic energy must be dispersed through the polymer chains. If the layer bonding is weak due to improper settings, the part will delaminate rather than absorb the shock, negating the material's inherent benefits.

The Science of Impact Energy in FDM

To achieve the full potential of Polycarbonate’s toughness, parts must be printed in a controlled thermal environment. High internal stresses, caused by rapid cooling, act as micro-fracture points. By maintaining a high ambient temperature within an enclosure, we allow the polymer chains at the interface of two layers to entangle more thoroughly, creating a bond that approaches the strength of the base material.

• Extreme Energy Absorption: PC can withstand significant impact energy without catastrophic fracturing, often simply denting or deforming where other plastics would shatter.
• Thermal Stability: With a glass transition temperature around 140°C, PC maintains its structural resilience even in high-heat industrial environments.
• Dimensional Toughness: Once properly annealed, PC parts resist creep and maintain their mechanical properties under long-term load.
• Clarity and Aesthetics: Beyond strength, many PC variants offer optical transparency, which is critical for protective equipment.

Critical Print Parameters for Maximum Durability

If you are aiming for maximum impact resistance, the nozzle temperature is your most critical variable. We have found that printing at the upper limit of the manufacturer's range—typically between 260°C and 275°C—is necessary to ensure the extrudate has low enough viscosity to wet the previous layer. Furthermore, the part cooling fan should be turned off or kept below 10% to prevent the rapid quenching of the plastic, which is the primary cause of brittleness in PC prints.

Finally, consider the orientation of the part relative to the expected impact. While PC has excellent layer adhesion, it is still anisotropic. Orienting the layers so that the impact force acts perpendicularly to the Z-axis will significantly increase the part's survival rate in real-world applications.
